TileGrate™ is a fiberglass reinforced plastic structural grate used to support ceramic tiles and natural stones on a pedestal system.
tilegrate™ DECK GRATING
Our TileGrate™ Deck Grating is designed to support 2cm porcelain deck pavers or natural stone on an elevated deck system. TileGrate™ is constructed from high-strength, lightweight fiberglass. Fiberglass deck grating is a durable alternative to traditional metal grating.
tilegrate™
DECK GRATING
TileGrate™ is used to support ceramic tiles and natural stones on a pedestal deck system. TileGrate™ is a high-strength, corrosion resistant, fire retardant deck grate alternative to steel grating.
- 1-1/2” Deep X 1-1/2” X 1-1/2” Mesh
- 1-1/2” X 1-1/2" Top mesh
- 22-3/4” X 48”
- 28 lbs/grate (3.8 lbs/sqft)
- 1-1/2" Load bar centers
- 1/4" Load bar width
- 8 Load bars/Ft. of width
- 70% open area
- Made in the USA
TileGrate™ FEATURES
- Made of high strength fiberglass reinforced plastic (FRP) designed to support materials typically not capable of being installed on a pedestal system.
- Delivered to your site already cut to appropriate size for pedestal installation
- High strength-to-weight ratio when compared to traditional materials like metal, concrete and wood, less than one-half the weight of steel grating.
- Corrosion resistant in the harshest environments and chemical exposures.
- Will not rust or corrode and will continue to maintain structural integrity over time.
- Fire Retardant – flame spread of 25 or less as tested in accordance with ASTM E-84. Also meets the self-extinguishing requirements of ASTM D-635.
tilegrate™ specifications
TileGrate™ Detail | |||
|---|---|---|---|
Description |  Dimension | ||
Depth | 1-1/2″ | ||
Mesh Dimension | 1-1/2″ x 1-1/2″ | ||
Overall Size | 22-3/4″ x 48″ | ||
Weight | 28 lbs/grate (3.8 lbs/sqft) | ||
Load Bar Width | 1/4″ | ||
Load Bars/Ft. of Width | 8 | ||
Open Area | 70% | ||
tilegrate™ downloads
WHY CHOOSE ELEVATED DECK SYSTEMS™ DECK GRATING
HIGH STRENGTH

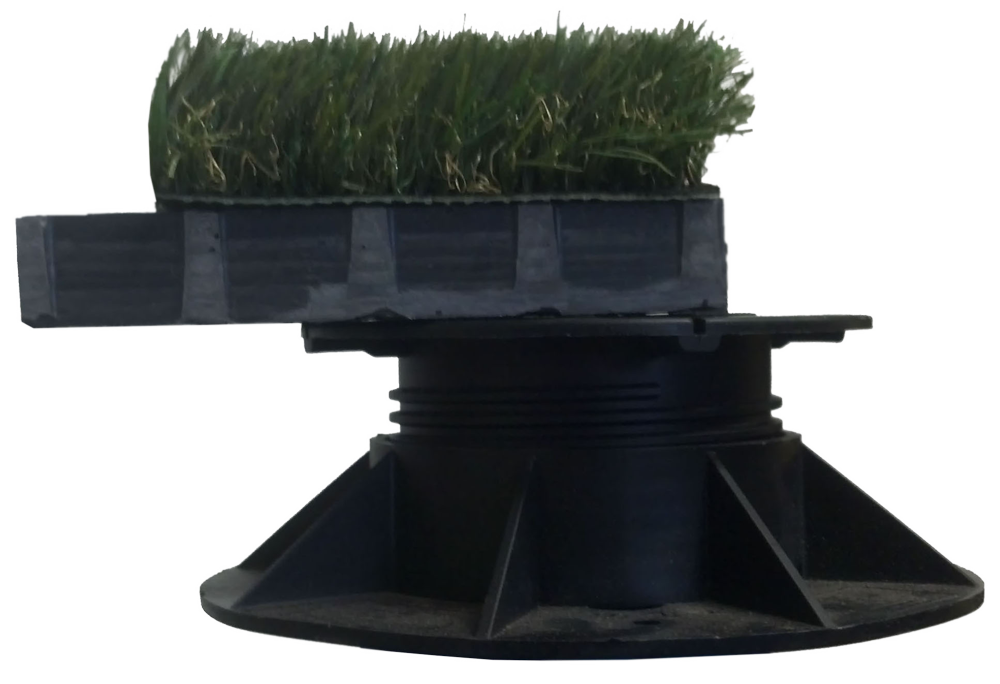

TurfGrate™ and TileGrate™ deck grating has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. Our fiberglass deck grating is less than one-half the weight of steel grating.
corrosion resistant
TurfGrate™ and TileGrate™ deck grates are corrosion resistant to the harshest environments and chemical exposures. Unlike metal and wood, TurfGrate™ and TileGrate™ fiberglass deck grating will not rust or corrode and will continue to maintain structural integrity over time.
FLAME RETARDANT
TurfGrate™ and TileGrate™ fiberglass deck grating have a flame spread of 25 or less as tested in accordance with ASTM E-84. It also meets the self-extinguishing requirements of ASTM D635.
